SpeedControl 1145 E 3KW SHS dc/dc

Item no.: 28680

View dealers
Support If you have questions or need assistance in choosing amongst or using our products, please do not hesitate to contact customer service:

SpeedControl 1145 E 3KW SHS is a frequency converter for motors up to 3000W/14A and ModBus interface for set-up. However, a add-on PCB can be mounted to use 0-10V signal.

The frequency converter can be used in a wide range of usage situations. A list of predefined motor profiles making it very easy to set-up and use the inverter can be found under ‘Other Documents’.

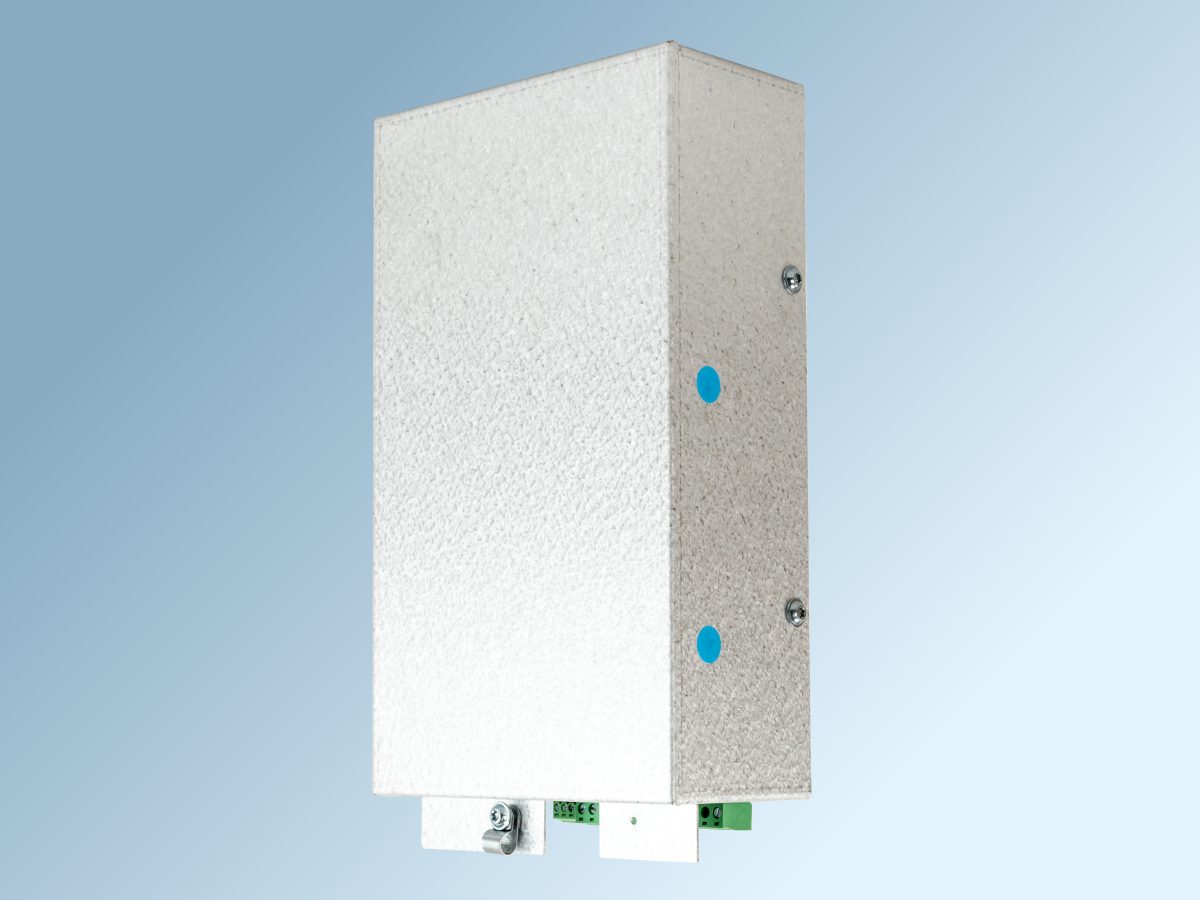

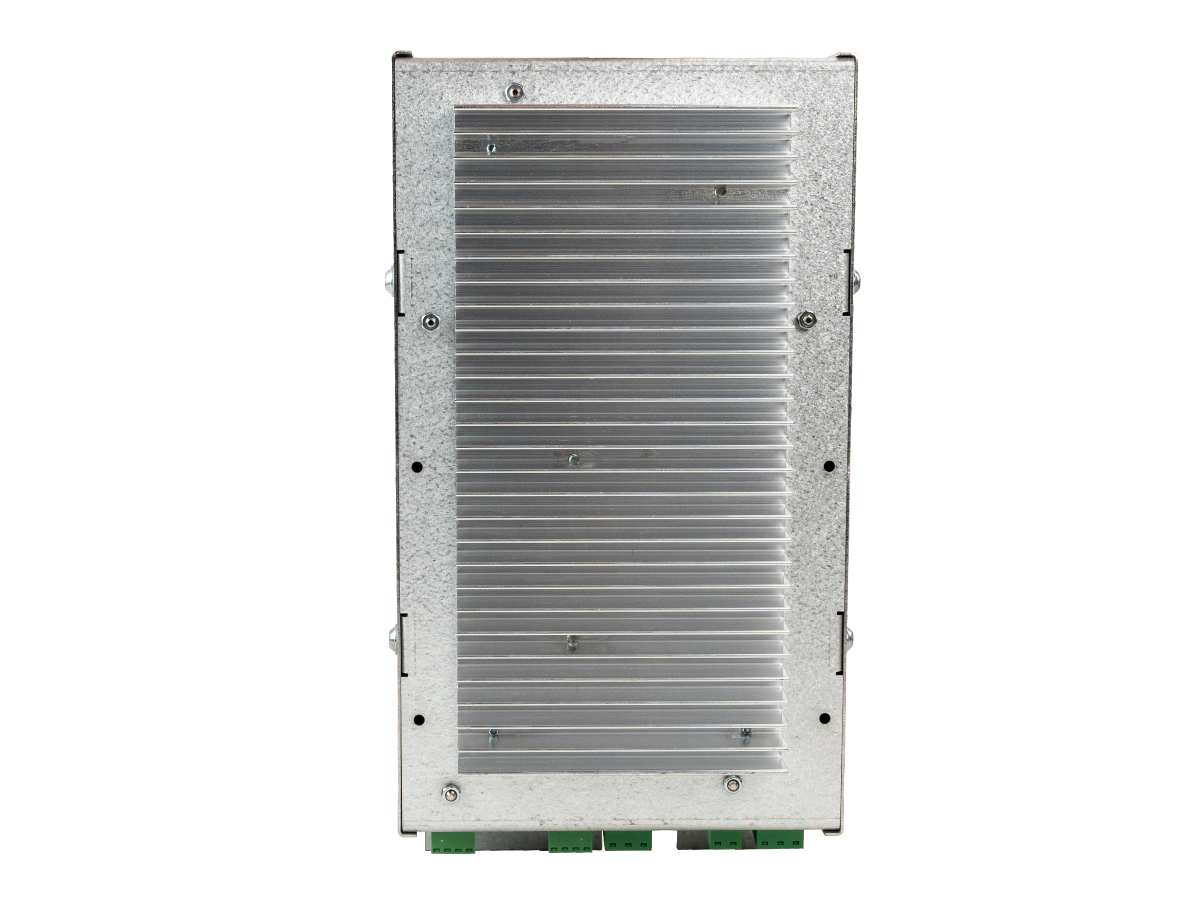

SpeedControl 1145E 3KW is supplied encapsulated in a solid metal cabinet made in IP54 and the construction is a robust design intended for demanding environments. On this model the cooling fins are short and transverse of the inverter.

Frequency

50 – 60 Hz

Power Supply

200 – 253 VAC

Bus type

MODBUS

Ambient Operating Temperature

-10 – 60 °C

Size (HxWxD)

250x140x85 mm

Output Current

3 x 14 A

Enclosure

IP 20

Maximum Load (Ampere)

16 A

EAN Number

5703471286809

Output Power (W / VA)

3000 W

Weight

Manual for SpeedControl 1145 SpeedControl 1145 ModBus Setting
Liste over motorer med foruddefineret profil i SpeedControl 1145 Udspecificerede motorprofiler i SpeedControl 1145
