Item no.: 40761
Support
If you have questions or need assistance in choosing amongst or using our products, please do not hesitate to contact customer service:

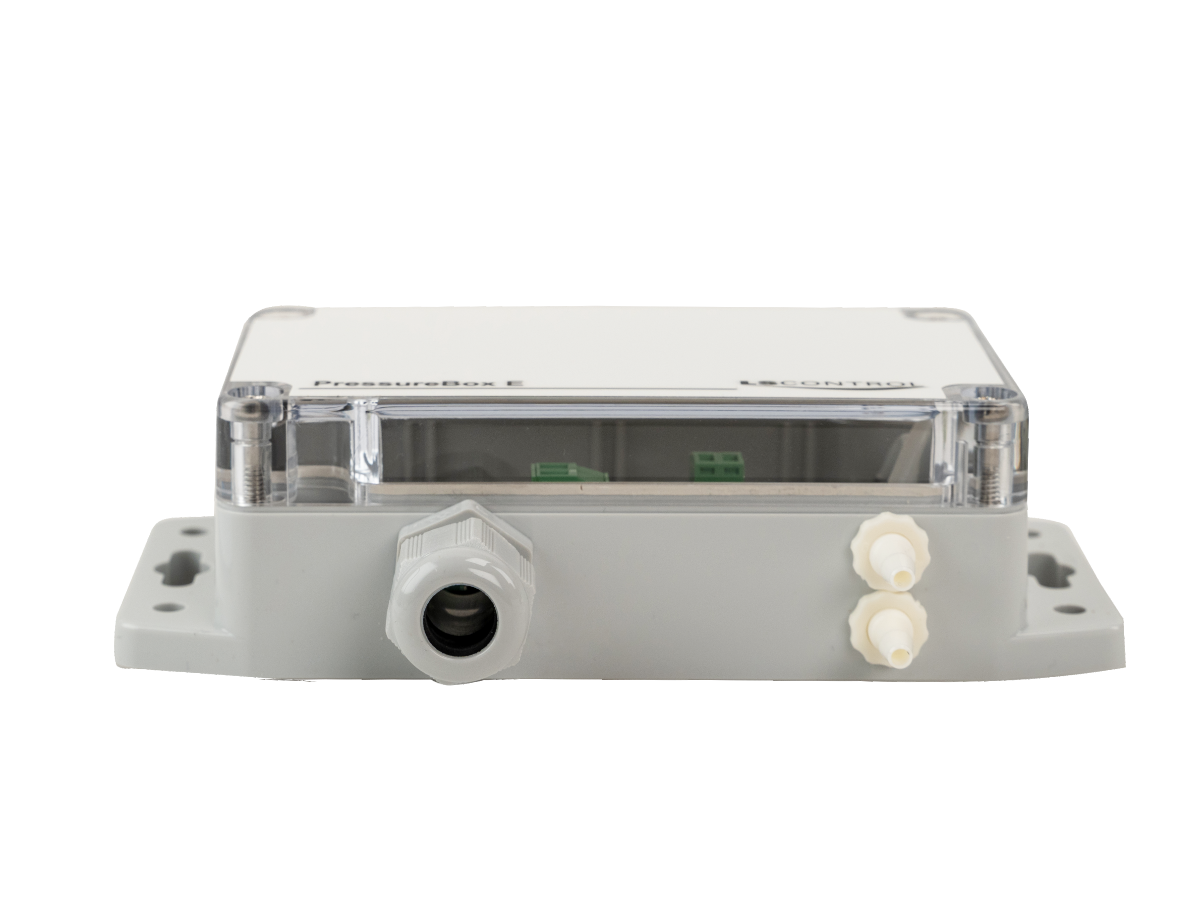

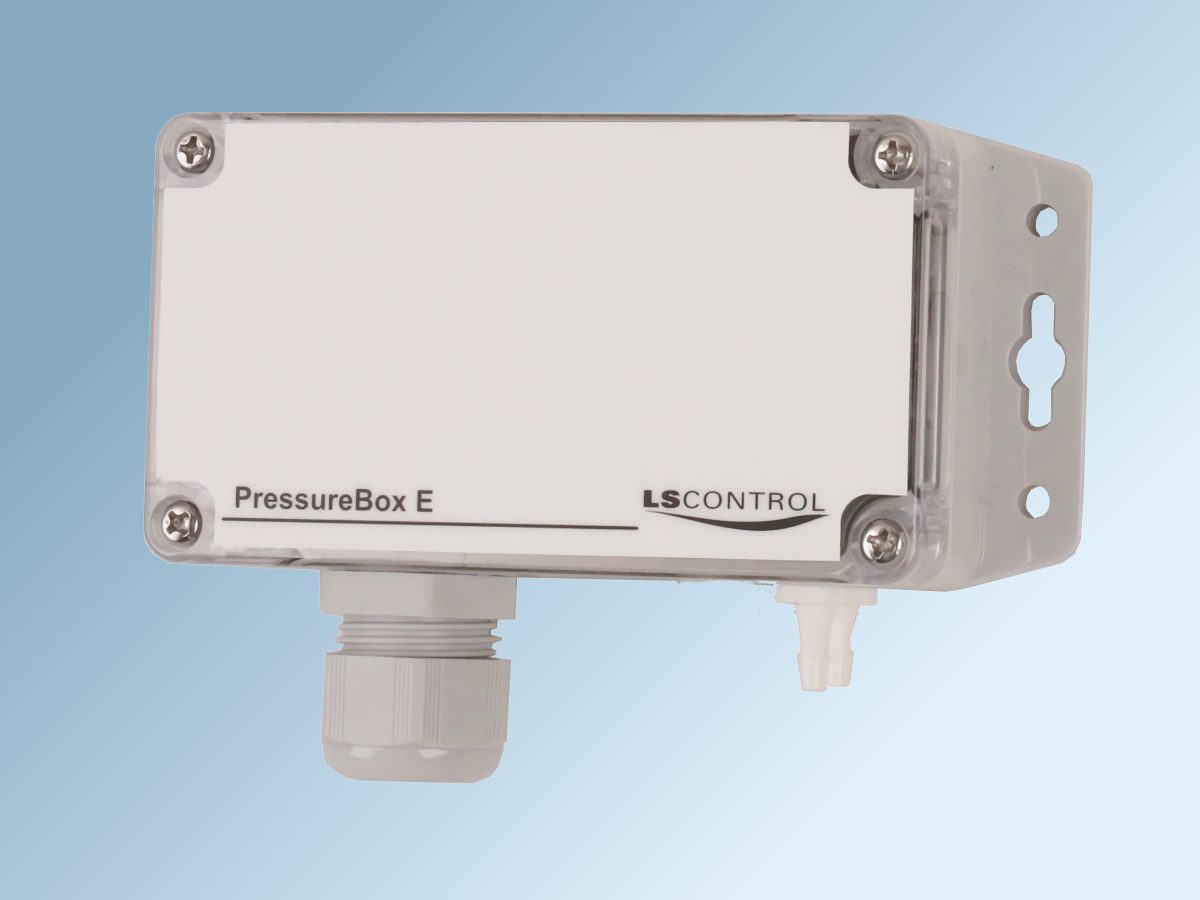

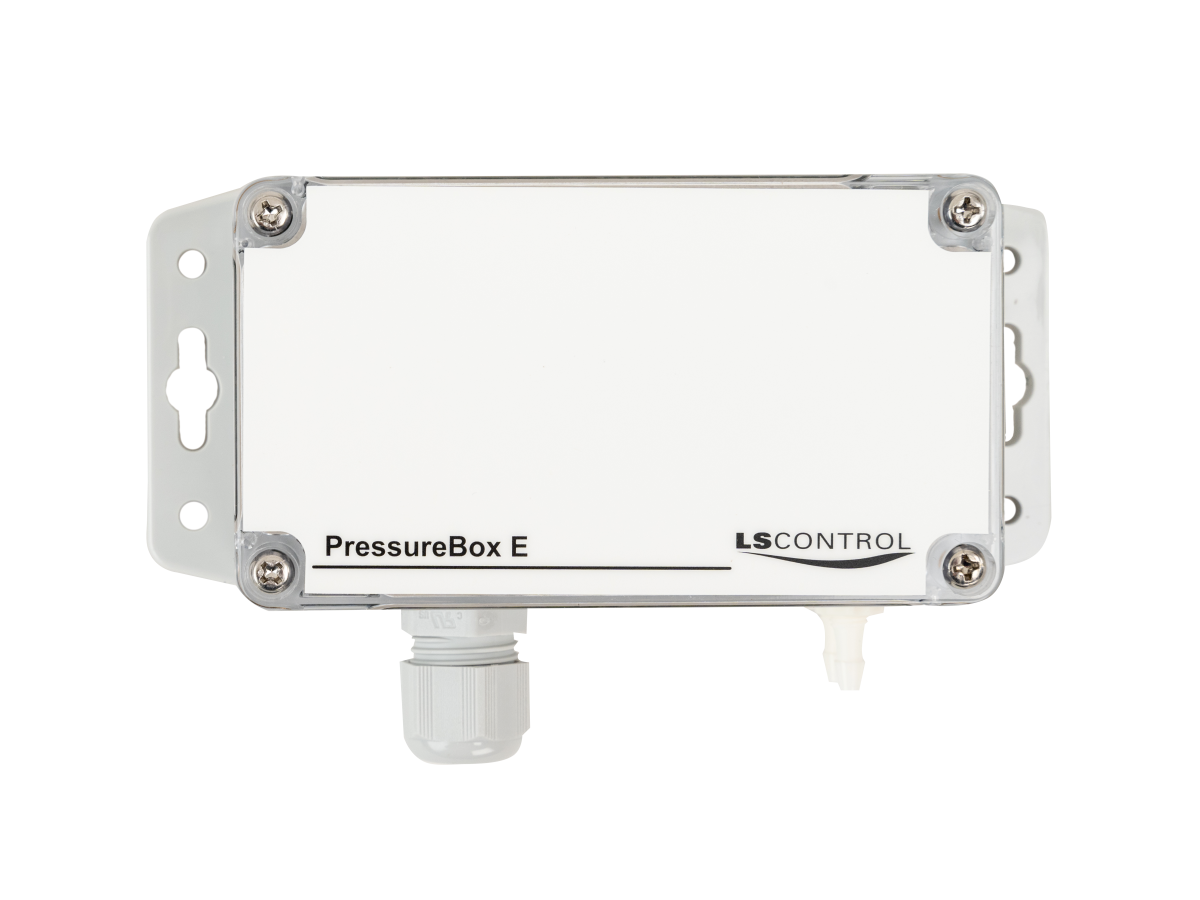

Pressure transducer without display and with 1 pressure sensor.
PressureBox measures gauge, negative and differential pressure. It is possible to set the pressure area to 4 different ranges (0-250Pa, 0-500Pa, 0-1500Pa or 0-2500Pa), factory setting is 0-500Pa.
Pressure is read via the analogue output 0-10V / 4-20mA output.
This specific model comes without ModBus.
| EAN Number | 5703471407617 |
|---|---|
| Size (HxWxD) | 65x145x40 mm |
| Weight | 200 gram |
| Enclosure | IP 54 |
| Supply Voltage | 24 VAC |
| Alternate Supply | 24 VDC |
| Max. tolerance of supply | 15% |
| Ambient Operating Temperature | -20 – 35 °C |
| Sensor Type | Tryktransducer |
| Precision Sensor | 1,55 af måld værdi, 3Pa |
| Measurement Area | 0 – 2500 Pa |
