The product is discontinued. Use item number 43402 MultiController E Regulate instead, or see related products for alternative temperature controllers.

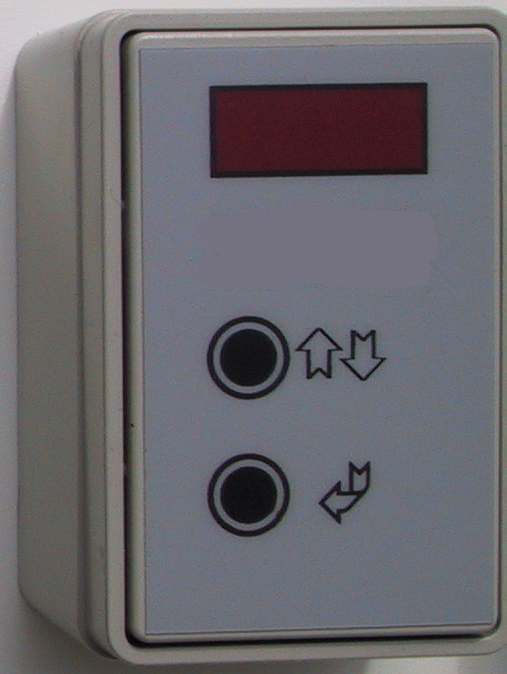

The temperature regulator type ES 604 is a proportional regulator with the possibility of an internal/external sensor.
The controller’s temperature range is 0-40 °C with proportional band (xp) variable 2-10 °C (setup in menu).
The regulator regulates a 0-10V signal around a set setpoint with 5 volts out at the setpoint. The regulator’s output signal can be inverted around the setpoint (see illustration 1). This is a setup in the menu.
It is possible to override the regulator to max. output voltage with an external switch.
