The product is discontinued and we do not have an immediate alternative. Refer to related products for other temperature controllers.

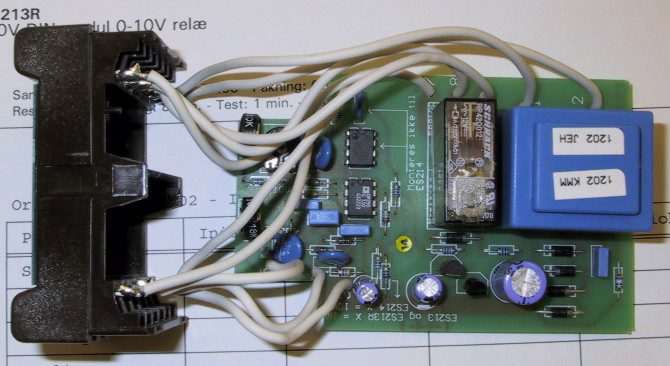

Automation module for mounting in a board. ES 213R is used where you want to maintain a temperature by regulating the supplied power with the module’s 0 – 10V output. A 22K NTC sensor and 47K potentiometer must be connected to set the temperature. These components are ordered separately. The temperature range is standard 0 – 40°C. With this coupling, the 0 – 10V output signal will either decrease or increase when the temperature at the sensor is higher than the set value. The direction of operation is determined by the connection.
If the output signal is above 1 V, the relay pulls and closes the connection between terminals 7 and 8.
The width of the proportional band / regulation range is adjustable between 0.2 and 4°C.
Manual in Danish language only.
