Basic Regulate CO2+Temperature / ES 1090

Item no.: 44102

View dealers
Support If you have questions or need assistance in choosing amongst or using our products, please do not hesitate to contact customer service:

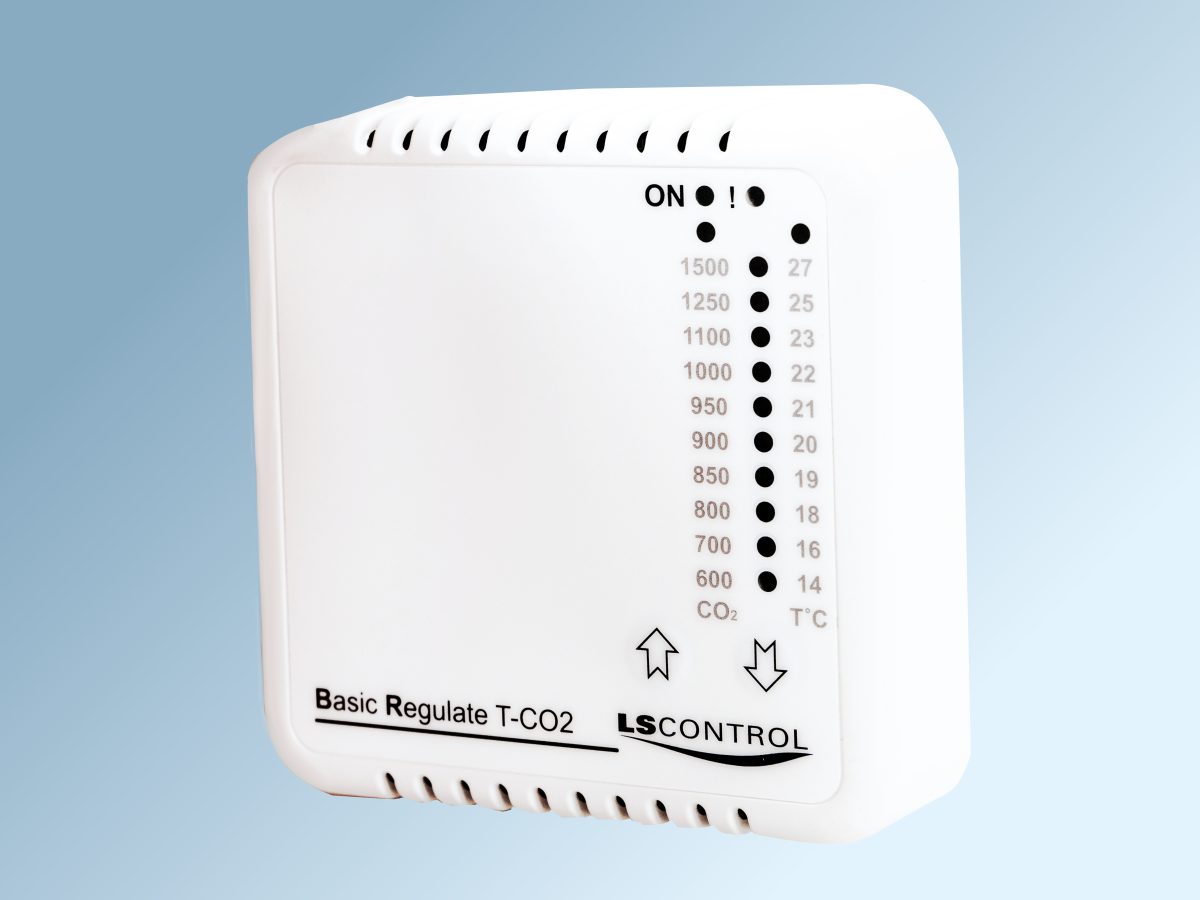

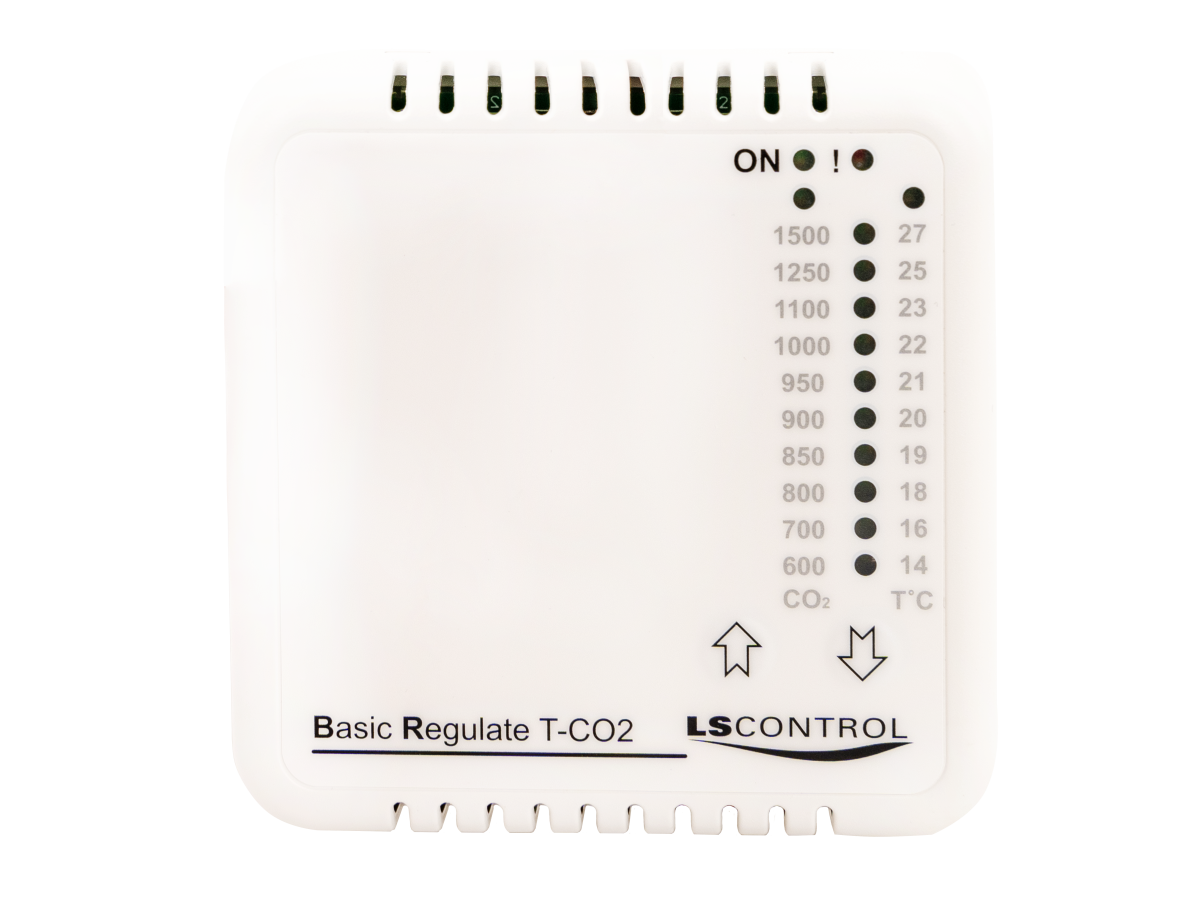

Regulator with build-in CO2 and temperature sensor and alarm-lamp. The regulator regulates etc. a ventilator, damper or other equipment using a 0-10V control signal. COcan be adjusted in the range 600-1500ppm and temperature in the range 14-27°C

Basic regulate i equipped with a green light for operation and a red light for warnings from Tacho-signal from EC-motor / Ventilator or a pressure switch monitoring the filter.

BasicRegulate

uses the widely used ABC algorithm, which ensures long life without calibration. Only the room cannot be used constantly, but must regularly get sufficient airflow to lower the CO2 to fresh air level.

Enclosure

IP 22

Power Supply

230 VAC

Frequency

50 Hz

Max. tolerance of supply

10%

Power outlet

230 V

EAN Number

5703471441024

Ambient Operating Temperature

0 – 40 °C

Number of 0-10V Outputs

1

Size (HxWxD)

85x85x30 mm

0-10V Output Current

5 mA

Measurement Area 2

0 – 40 °C

Output Current

Max. 2 A

Measurement Area

0 – 2.000 ppm

Guide for Basic Regulate T-CO2 / ES 1090
Declaration of Conformity (Danish only)
