Pot V S IP54 / ES 926

Item no.: 41830

View dealers

Support

If you have questions or need assistance in choosing amongst or using our products, please do not hesitate to contact customer service:

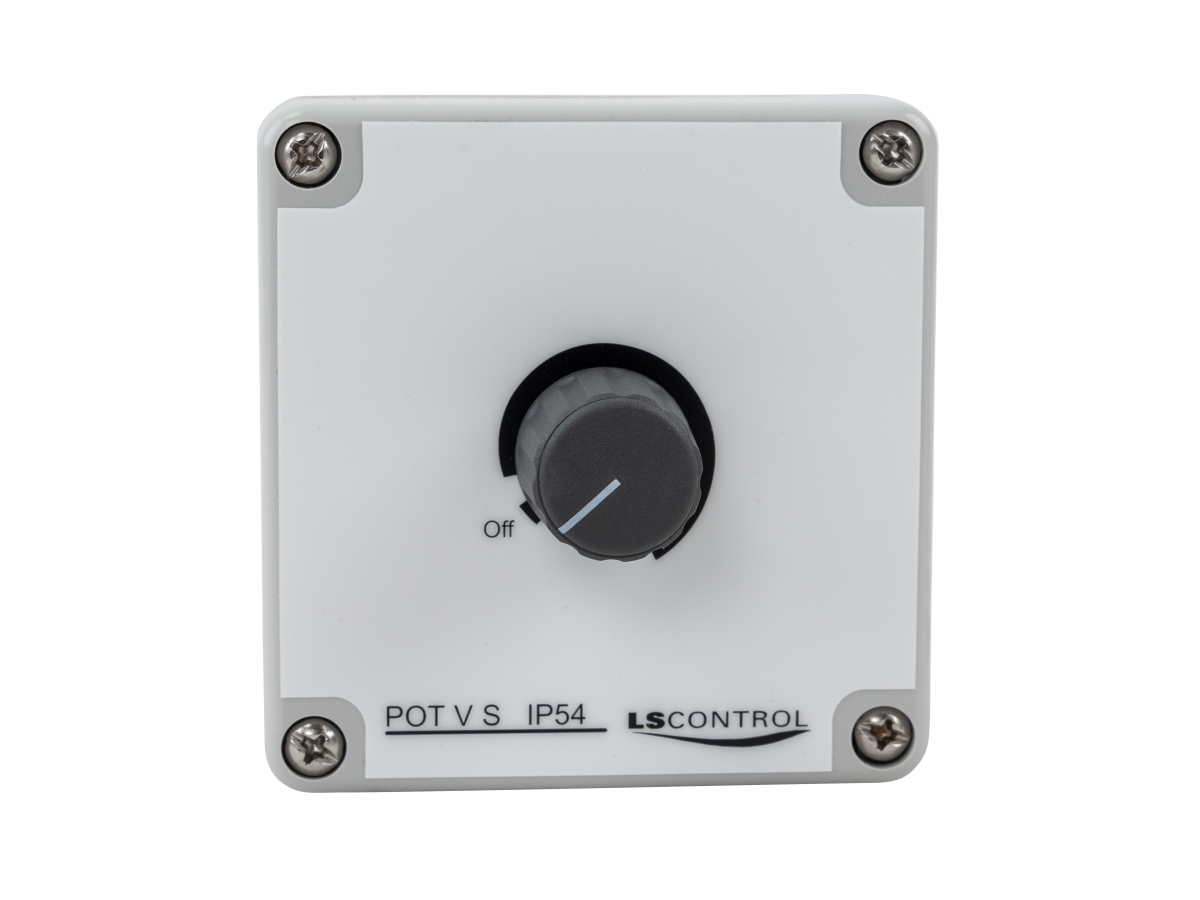

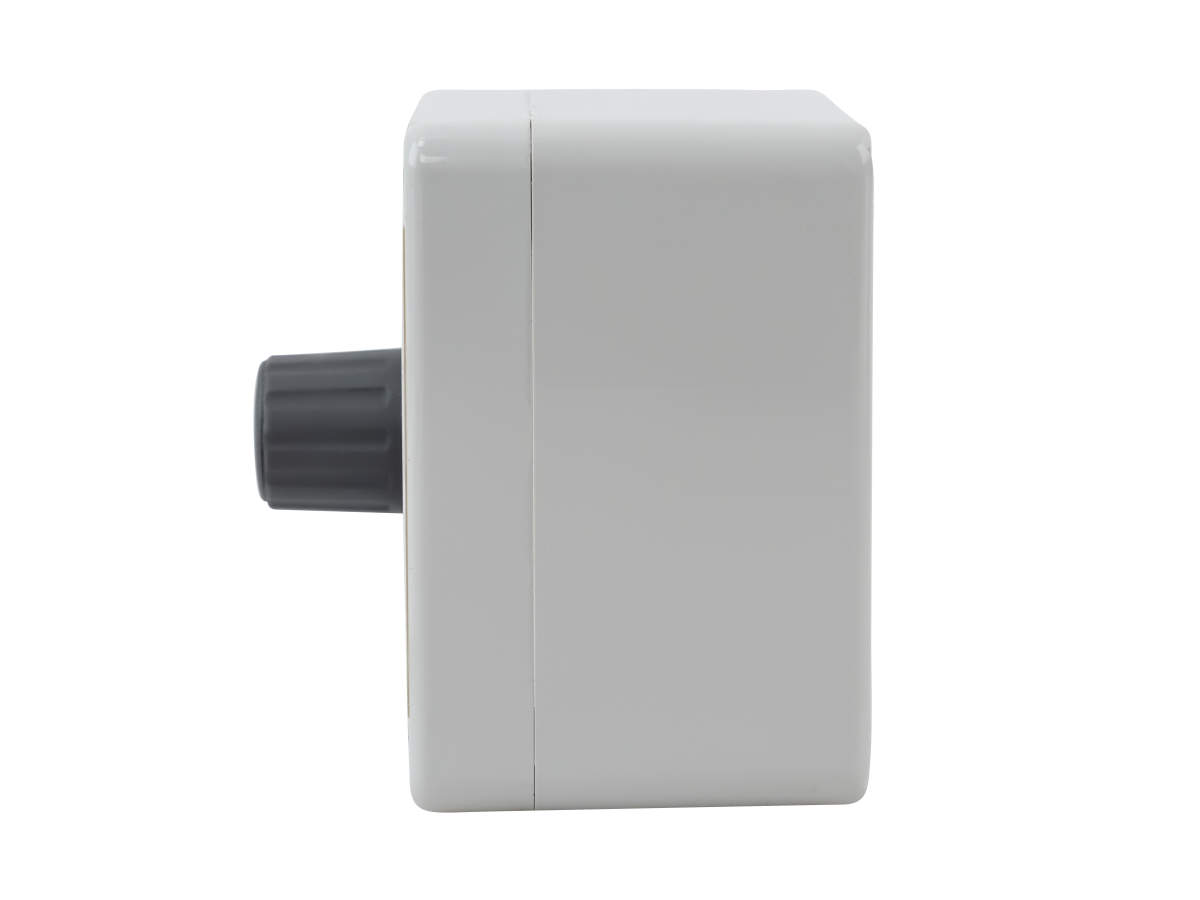

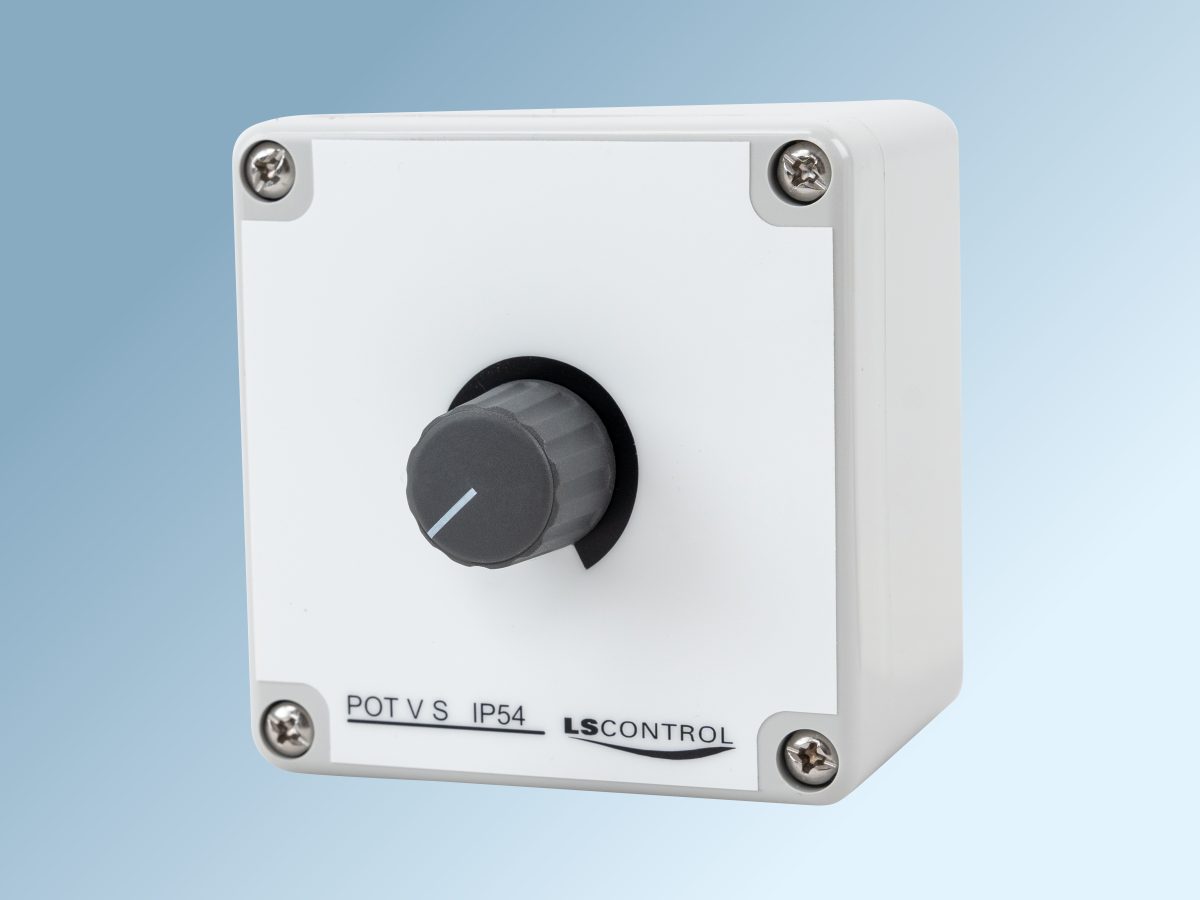

Potentiometer in IP54 box for adjustment of 01-10VDC output voltage. Equipped with a single pole switch in the potentiometer shaft. Equipped with internal trimmer for adjustment of minimum output voltage 0-4.5V.

EAN Number

5703471418309

Size (HxWxD)

80x82x54 mm

Enclosure

IP 40

Supply Voltage

24 VAC

Max. tolerance of supply

VAC: 15%

0-10V Output Current

10 mA

Alternativ tilslutningsspnæding

15 – 30 VDC

Guide for Pot V S / ES 926
Declaration of Conformity (Danish only)
