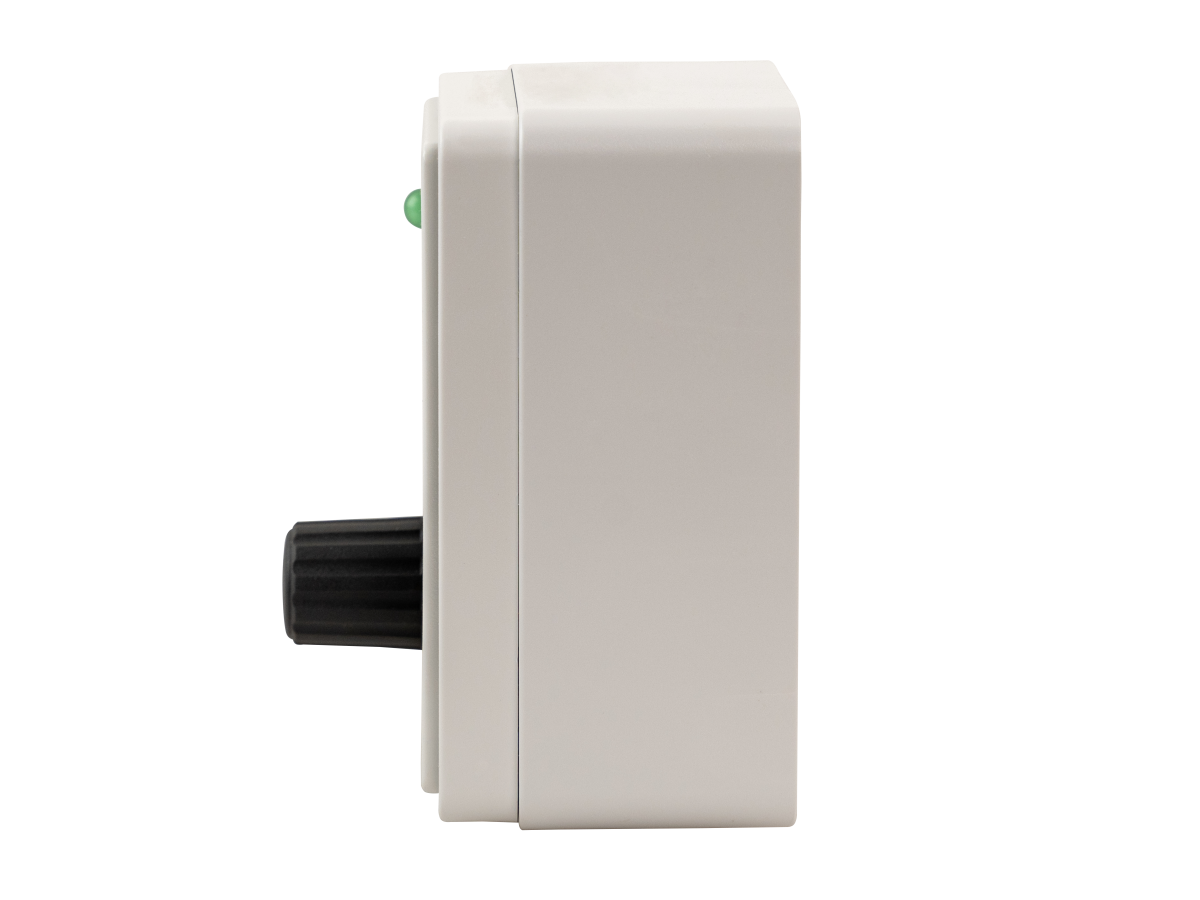

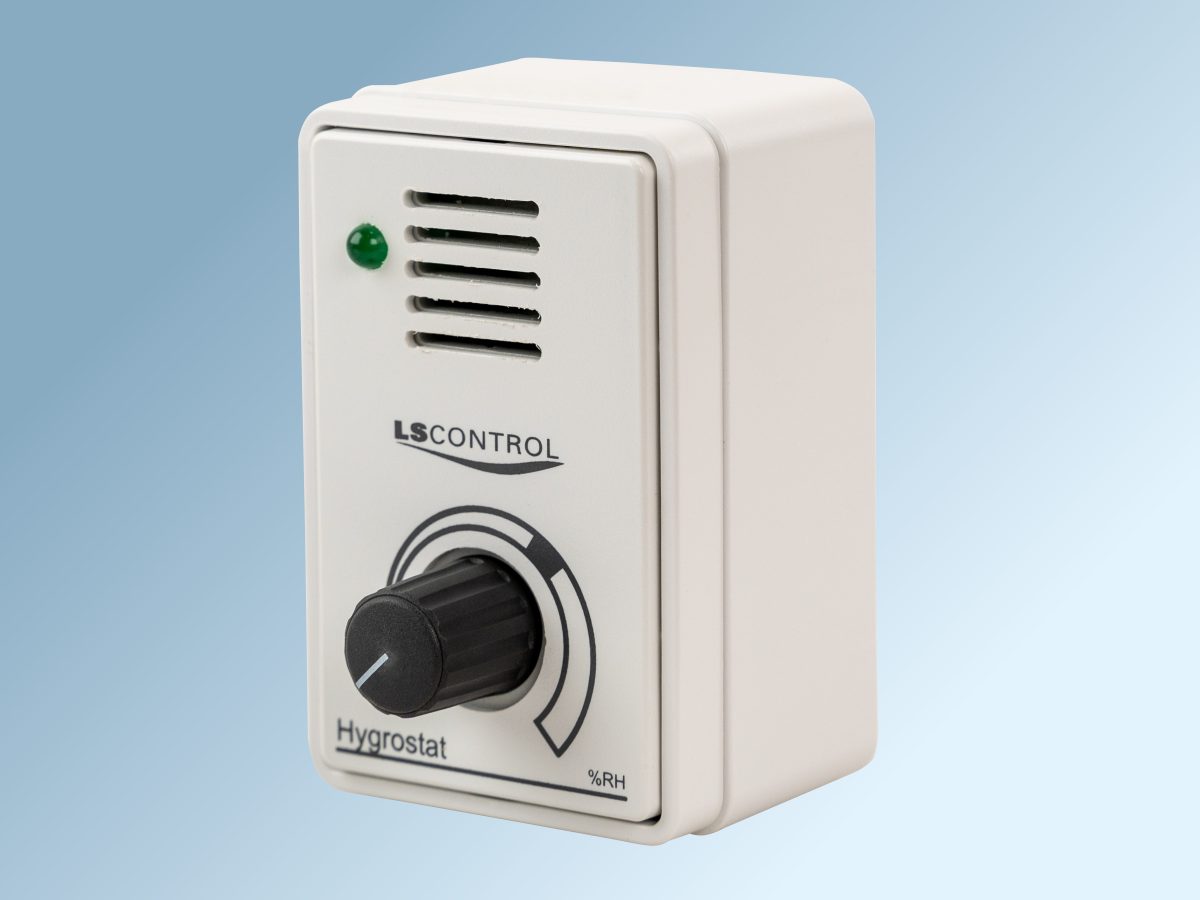

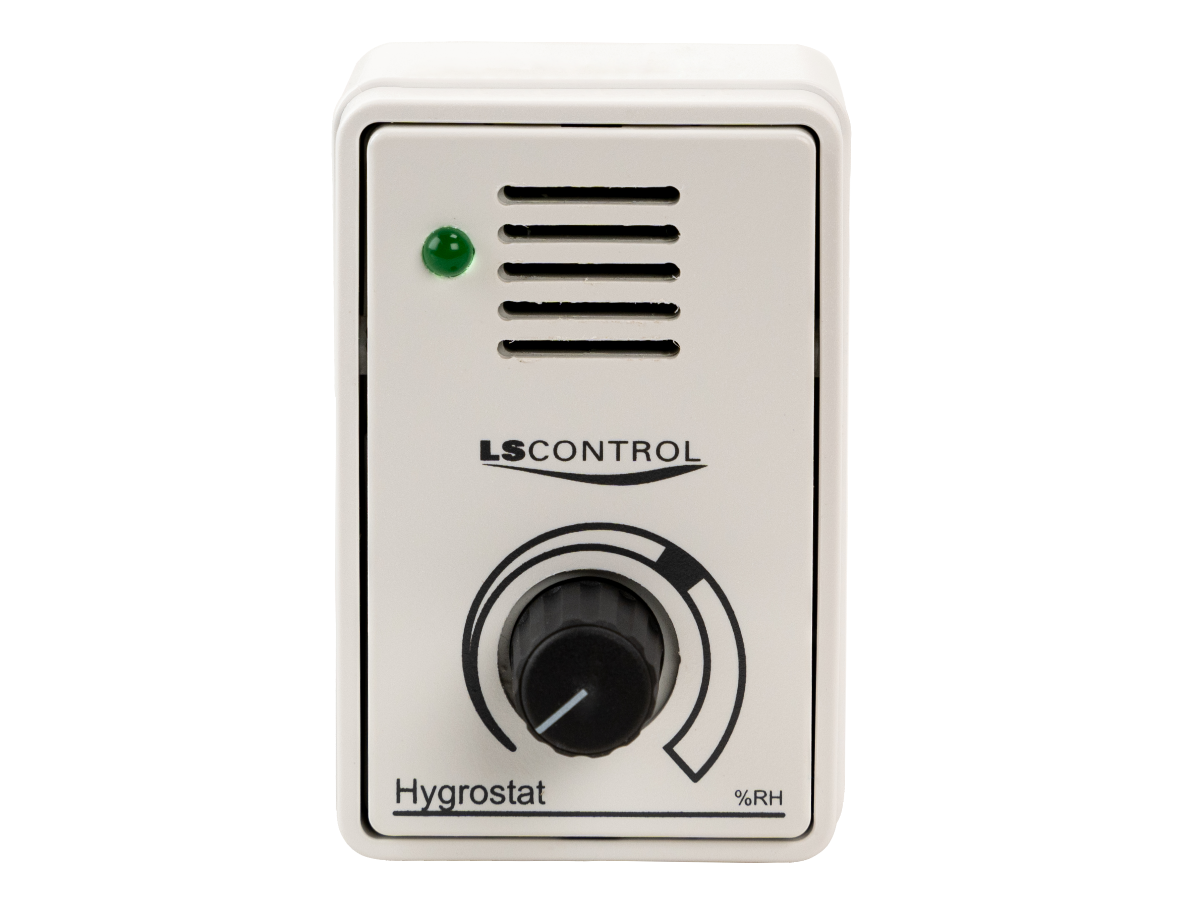

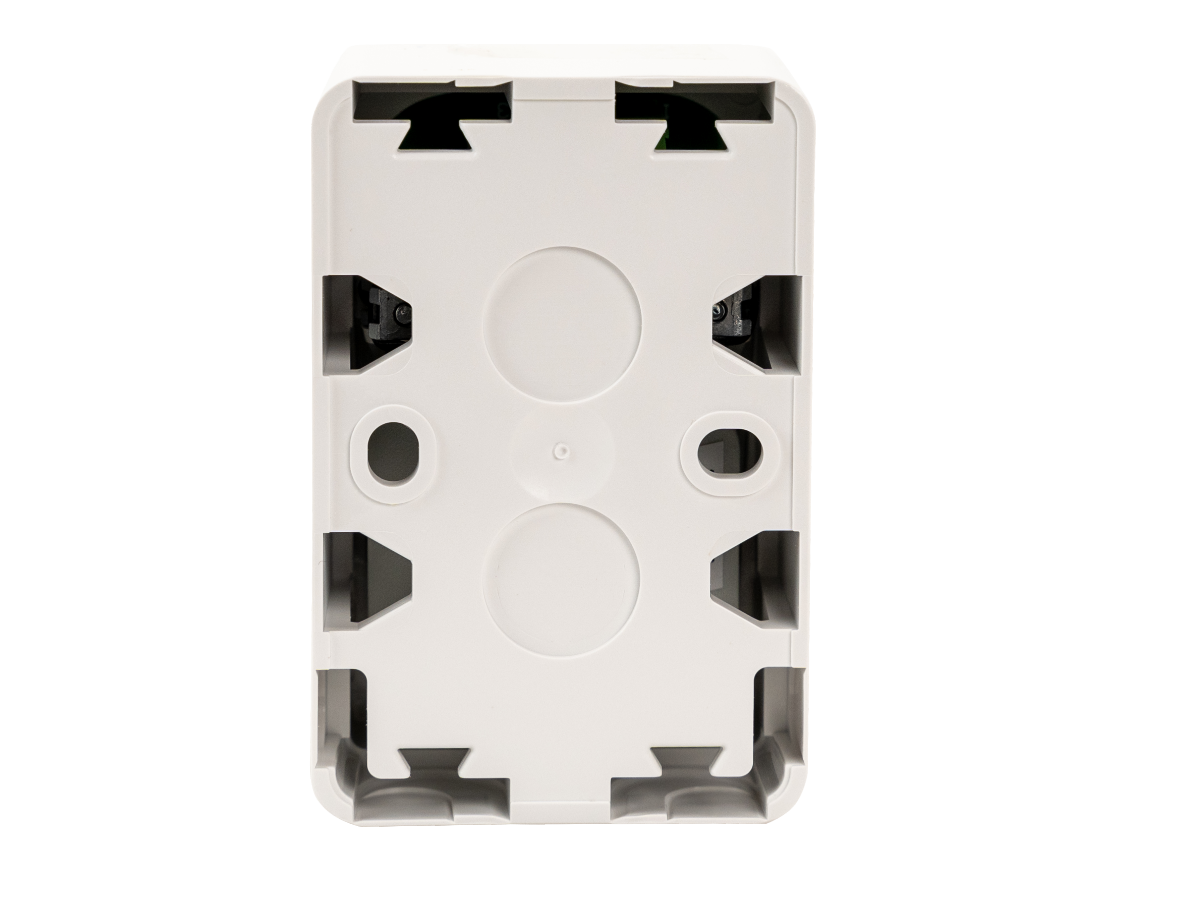

Humidistat WE – for installation in rooms where it is desired that a fan starts and stops depending on the humidity of the air.
The humidity sensor outputs 230V via a relay contact when the humidity in the room exceeds the set value. Operation is indicated by light in the LED on the front panel. When the humidity in the room is reduced, the fan stops. It is possible to invert the function.
| EAN Number | 5703471350210 |
|---|---|
| Size (HxWxD) | 79x52x56 mm |
| Enclosure | IP 20 |
| Supply Voltage | 230 VAC |
| Max. tolerance of supply | +6% / -10% |
| Ambient Operating Temperature | 10 – 50 °C |
| Relay Output | 230V 2,5A |
| Measurement Area | 20 – 90 %RH |
