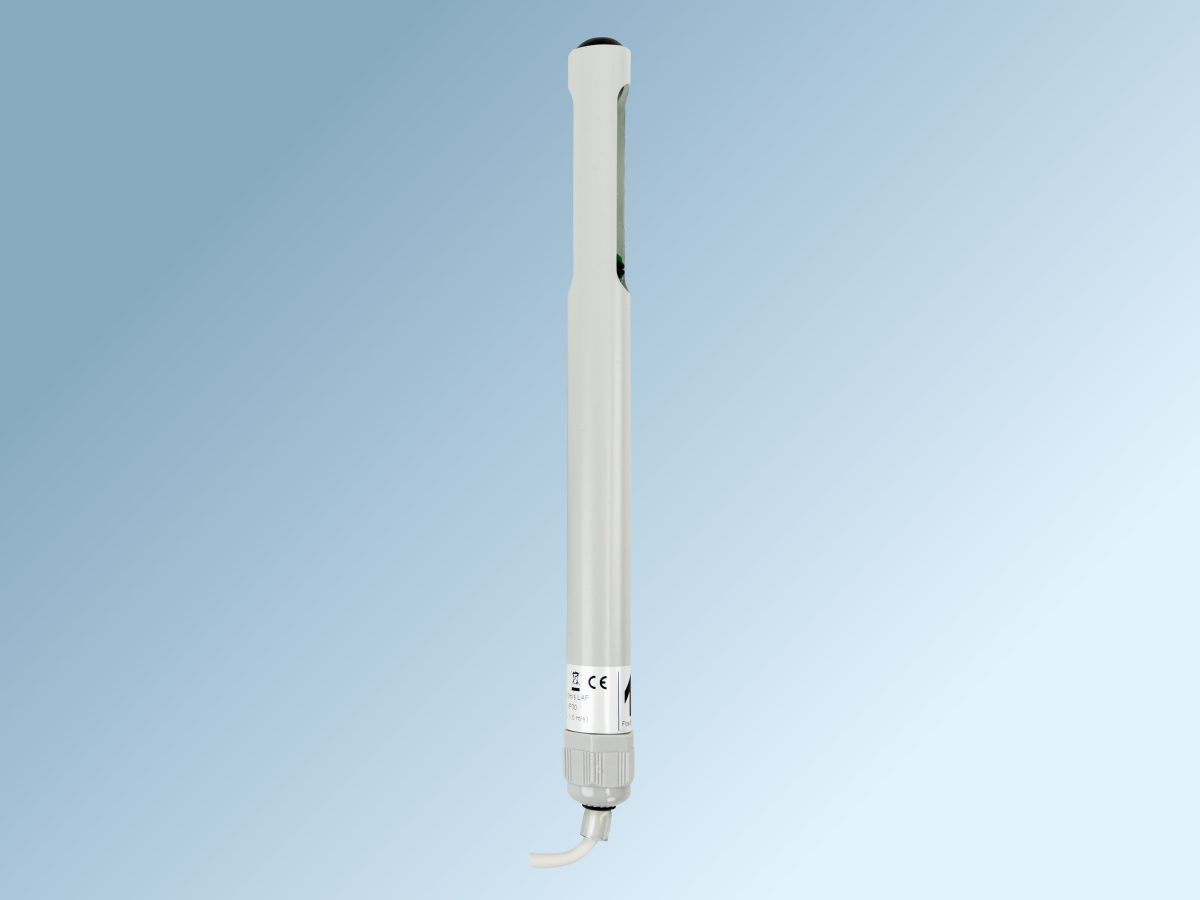

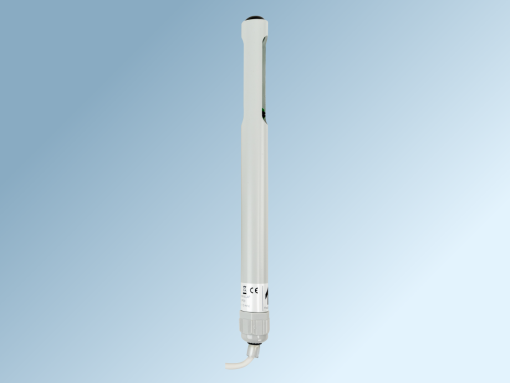

Duct Sensor temp PT1000 + hum / ES 991

Item no.: 49333

View dealers

Support

If you have questions or need assistance in choosing amongst or using our products, please do not hesitate to contact customer service:

Sensor for measuring of temperature and humidity in ventilation ducts.

The sensor measures the temperature of the air in the duct by a PT1000 sensor and humidity by a humidity sensor.

The sensor must be turned in such a way that the humidity sensor faces downwards (and the PT1000 sensor consequently faces upwards) -thereby ensuring that condensate, if any, does not rest on the humidity sensor but runs out of the sensor.

The sensor can also be bought with mounting bracket included, see article number 49338.

EAN Number

5703471493337

Size (HxWxD)

Ø18 – 200 mm

Enclosure

IP 00

Supply Voltage

24 VAC

Alternate Supply

15 – 30 VDC

Max. tolerance of supply

VAC: 15%

Output Power (W / VA)

1/2.5 VA

Ambient Operating Temperature

0 – 50 °C

Sensor Type

PT1000

Måleområde 1

10 – 90 %RH

Measurement Area 2

0 – 50 °C

Number of 0-10V Outputs

1

0-10V Output Current

10 mA
