Item no.: 44101
Support
If you have questions or need assistance in choosing amongst or using our products, please do not hesitate to contact customer service:

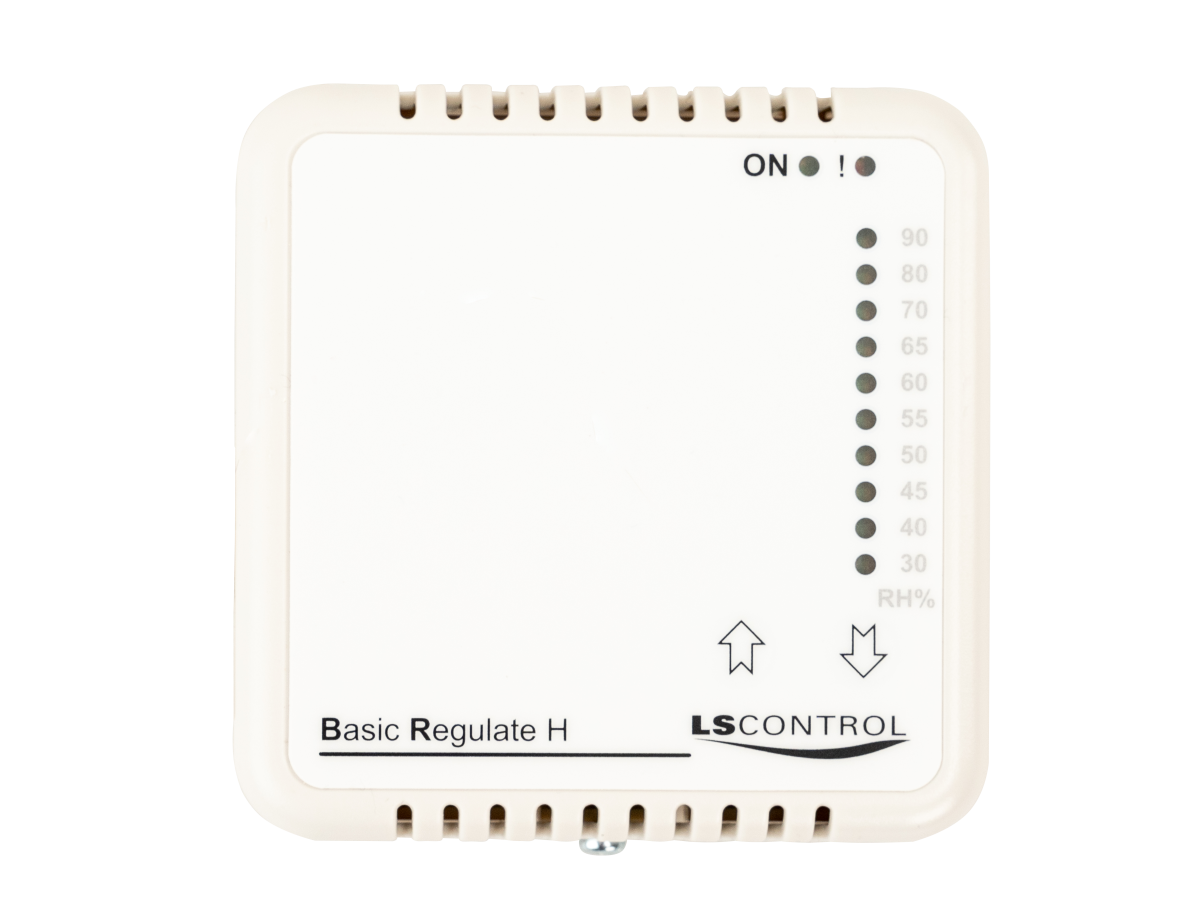

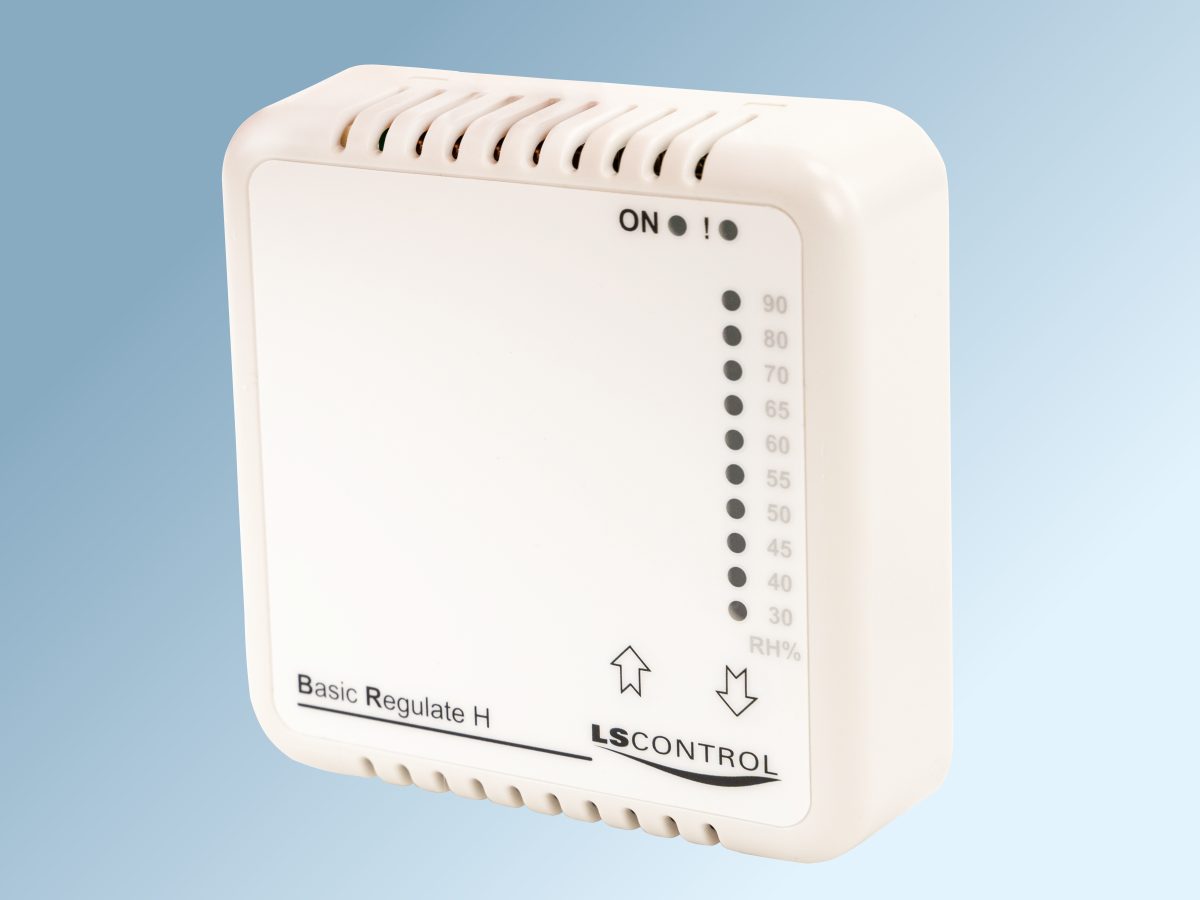

Regulator with build-in humidity sensor and alarm-lamp. The regulator regulates etc. a ventilator, damper or other equipment using a 0-10V control signal. Humidity can be adjusted in the range 30-90% RH
Basic regulate i equipped with a green light for operation and a red light for warnings from Tacho-signal from EC-motor / Ventilator or a pressure switch monitoring the filter.
| EAN Number | 5703471441017 |
|---|---|
| Ambient Operating Temperature | 0 – 40 °C |
| Measurement Area | 5 – 95 %RH |
| Enclosure | IP 20 |
| Supply Voltage | 230 VAC |
| Frequency | 50 Hz |
| Max. tolerance of supply | 10% |
| Power outlet | 230 V |
| Size (HxWxD) | 85x85x30 mm |
| 0-10V Output Current | 5 mA |
| Number of 0-10V Outputs | 1 |
| Output Current | Max. 2 A |
